Zacels Hinge and Latch Jig 40mm Door

£19.99

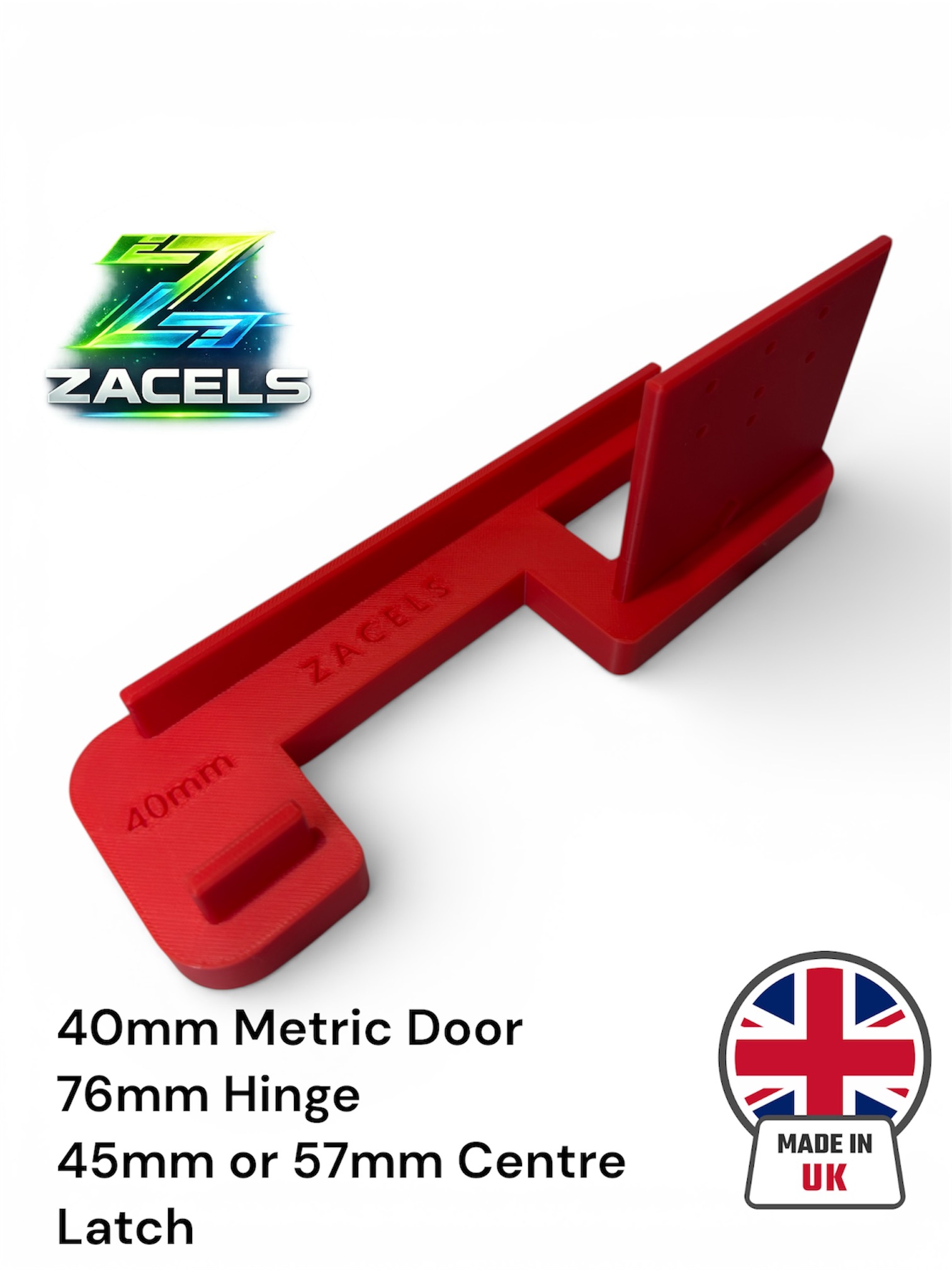

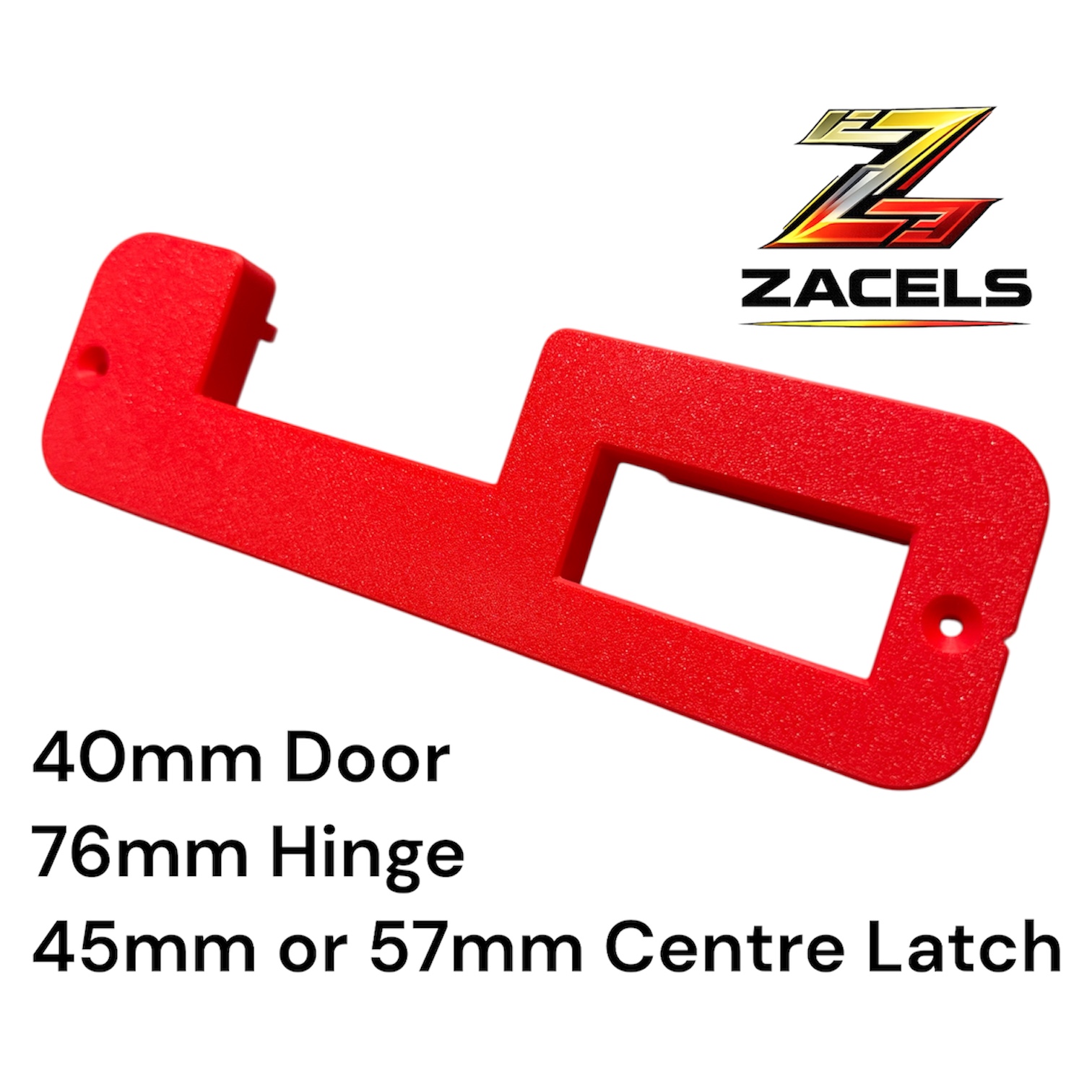

This Zacels Door Hinge and Latch Jig is for a 40mm (METRIC SIZE) door with 76mm Hinges and either a 45mm or 57mm centre Latch. Other models are available for Metric size doors 40mm. Please see other listings


Designed to be used with a 12-13mm template router cutter (such as the Trend 1/4″ Template Profile Router Cutter 12.7 x 9.5mm shown in the photos). The cutter is not supplied with the template.

As with any template, we strongly recommend you try the template on a spare piece of wood first to ensure it’s compatible with your hinge and cutter.
Perfect for Howdens Newington Latch Packs and Handles (Pre drilled holes in jig for bolt throughs)

Latch Packs

Howdens LAL0758 Newington Lever on Rose Door Handle Pack

Howdens LAL0770 Newington Dual-Tone Chrome Lever on Rose Privacy Door Handle Pack

Howdens LAL6008 Newington Matt Black Lever on Rose Door Handle Pack

Howdens LAL9909 Newington Antique Brass Lever on Rose Door Handle Pack

Howdens LAL9976 Newington Polished Black Nickel Lever on Rose Door Handle Pack
Process
  1. Install your cutter in your router and set the depth to match the thickness of your latch faceplate
  2. Mark the centre line of your latch using the v groove at the top of jig

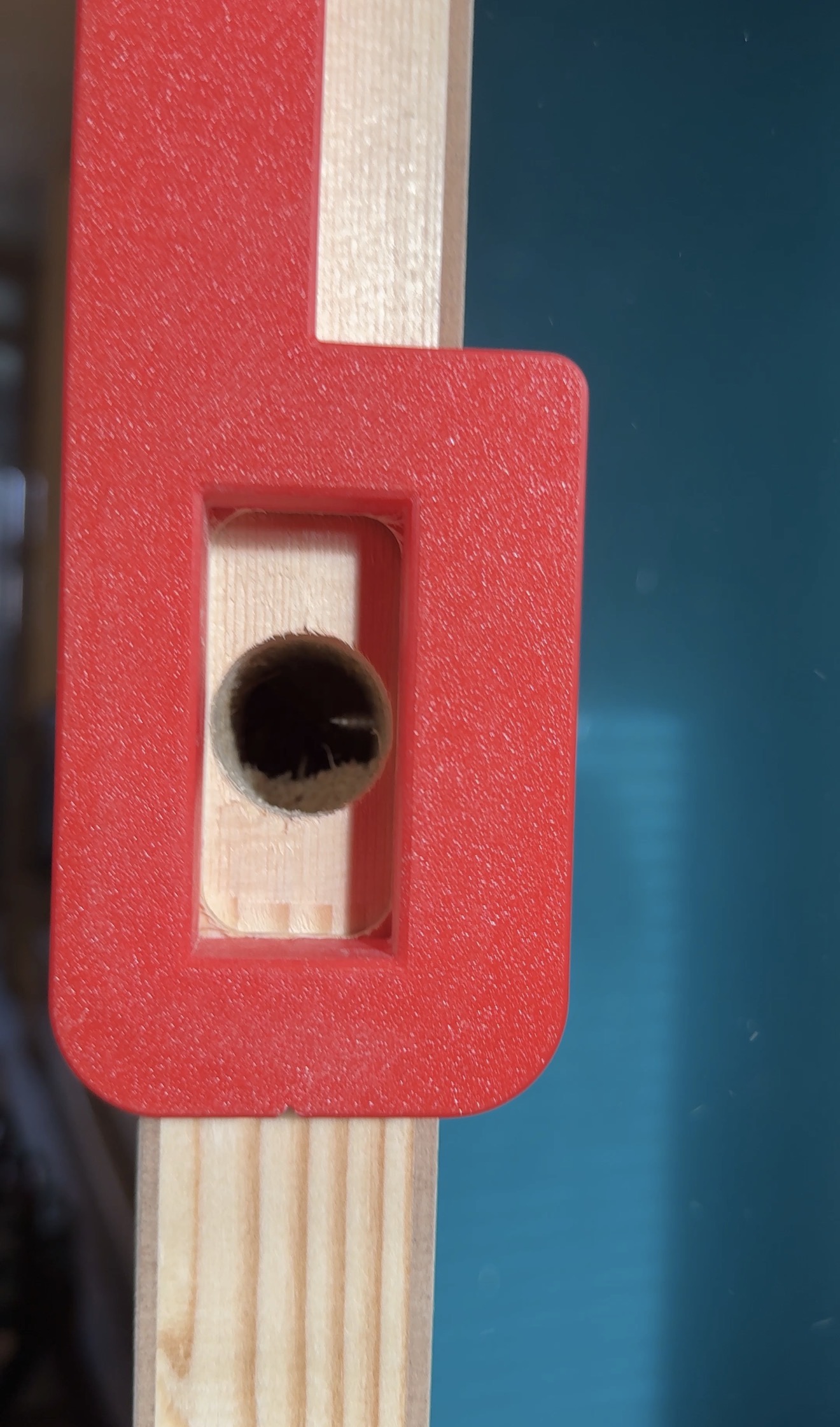

  3. Drill 25mm Hole in door edge on the centre mark

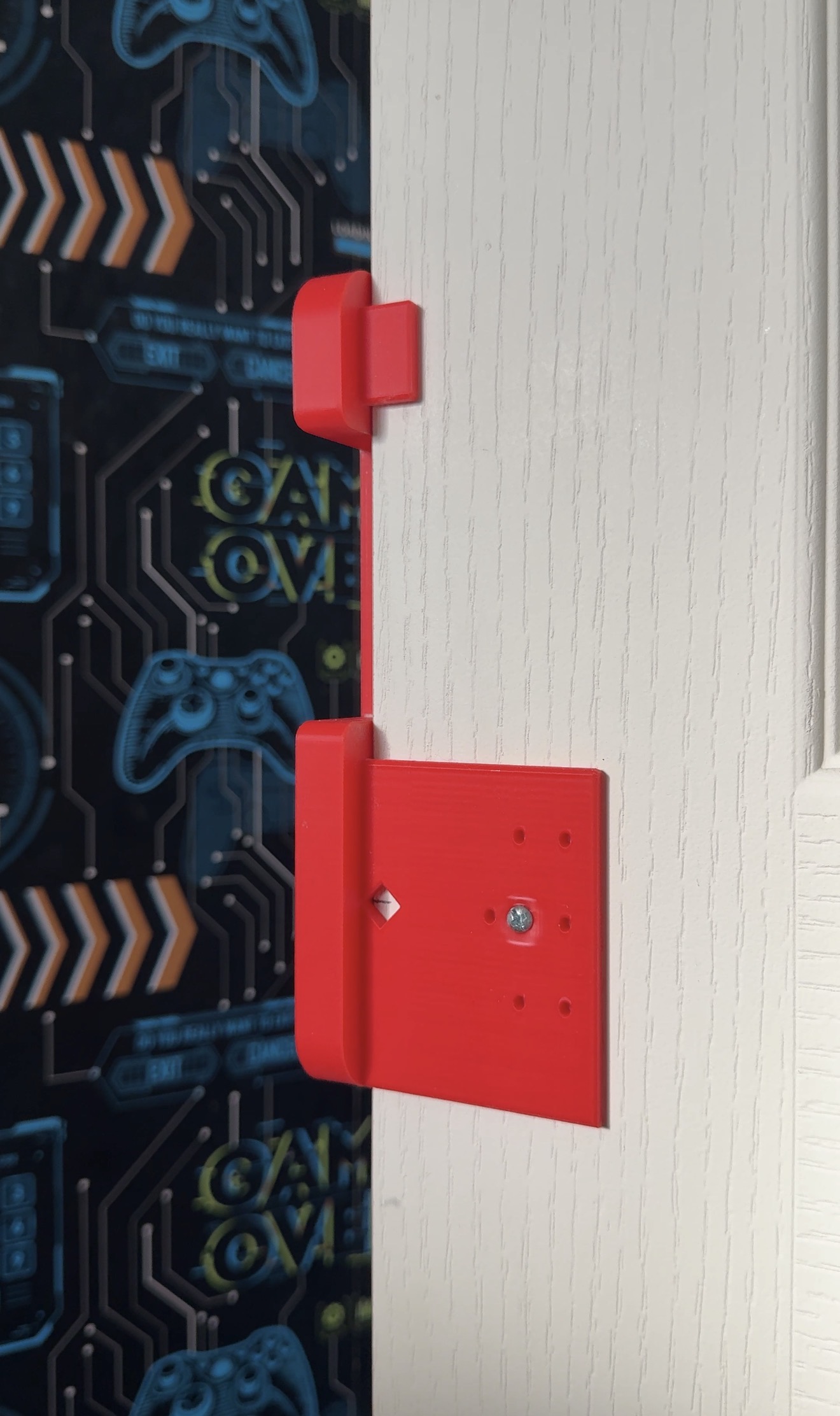

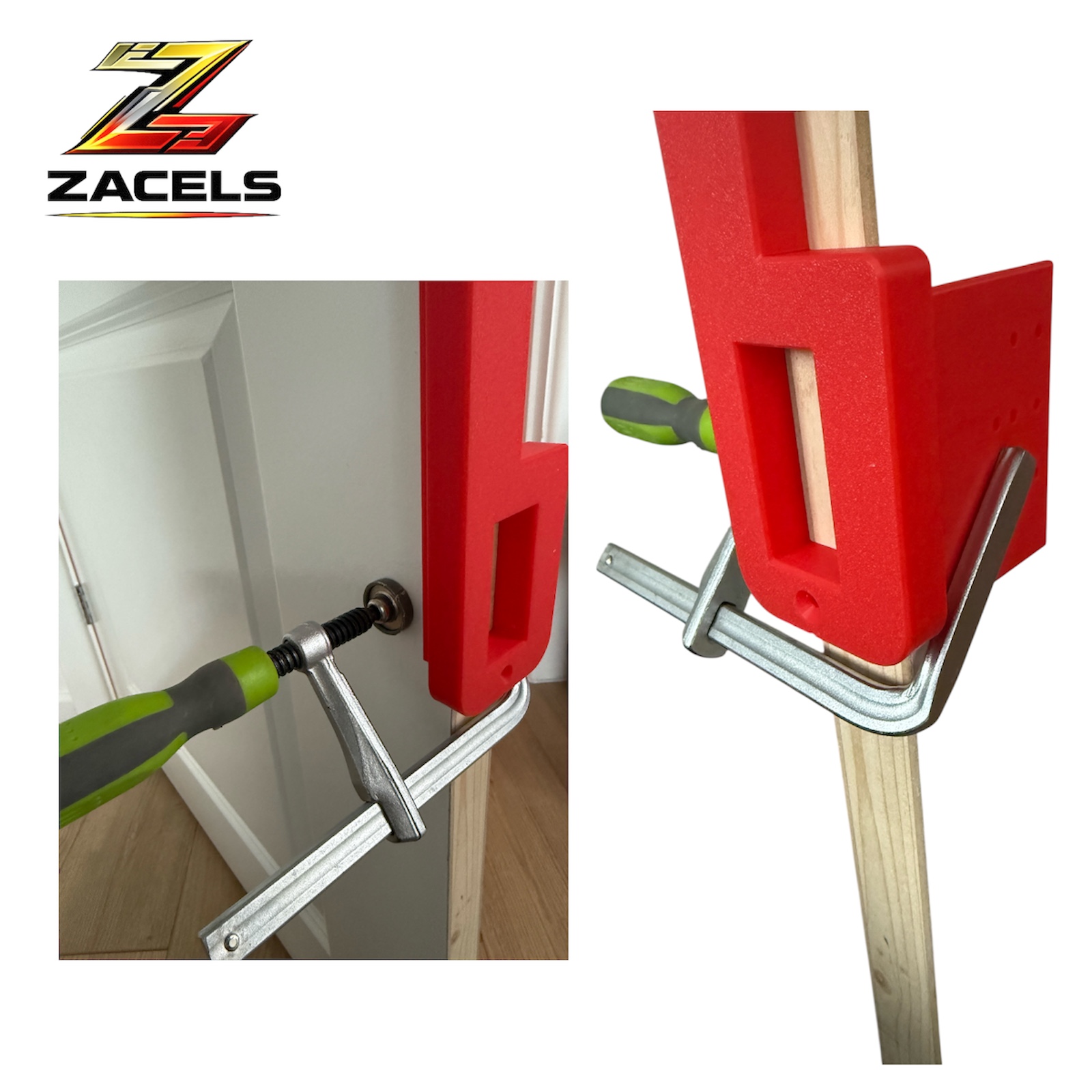

  4. Line up the centre line with the diamond shaped window and screw the jig in place (carefully choose the correct back set hole)
  5. Router the faceplate recess and use a chisel to finish the corners
  6. Pilot drill the door handle centre hole (carefully choose the correct back set hole) 3mm drill bit
  7. Pilot drill the bolt throughs (only if using Howdens Newington Handles) if not then skip this step
  8. Un-clamp or unscrew the jig
  9. (full video set up on our YouTube channel below)
YouTube Video Demonstration Click Here
Category:
Guaranteed Safe Checkout

Total Sold: 1

colour may vary

suitable for 3 inch hinges

shipping is free and be with you in 2-3 days depending on stock.

FREE SHIPPING TO THE UK ONLY



Weight 1 kg
Dimensions 300 × 150 × 150 cm
